CBMM Ship Plans by Department of the Navy (Designer)

These ship plans are found in the collection of the Chesapeake Bay Maritime Museum in St. Michaels, Maryland.

More information about how to obtain copies of the plans, or how to visit the CBMM archives to examine these and other plans, may be found at the "open CBMM page" link.

Catalog #TitleBoat TypeArtist/MakerDate MadeDescriptionDimensionsPlace MadeFull ImageCBMM Cat. Page

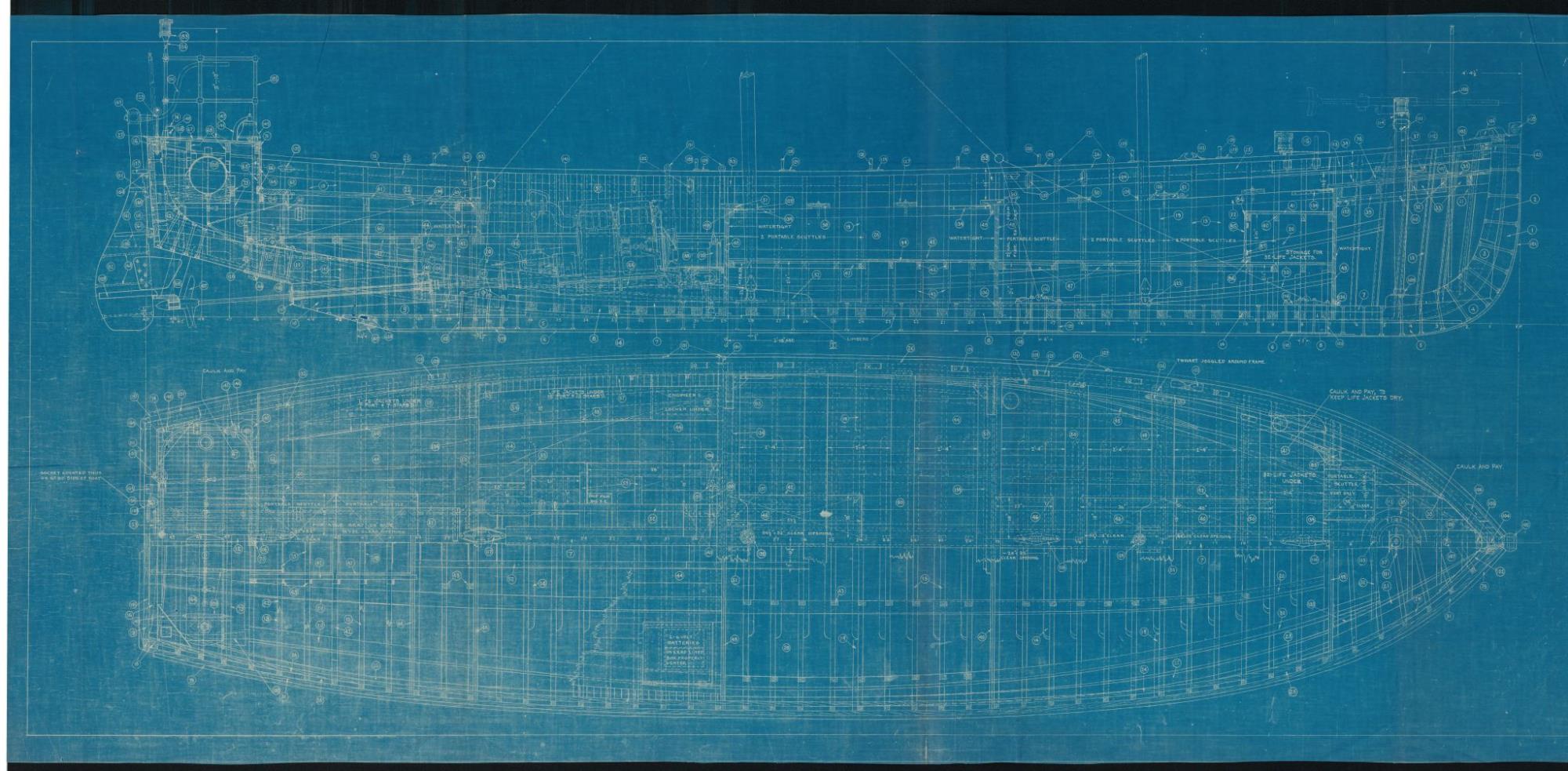

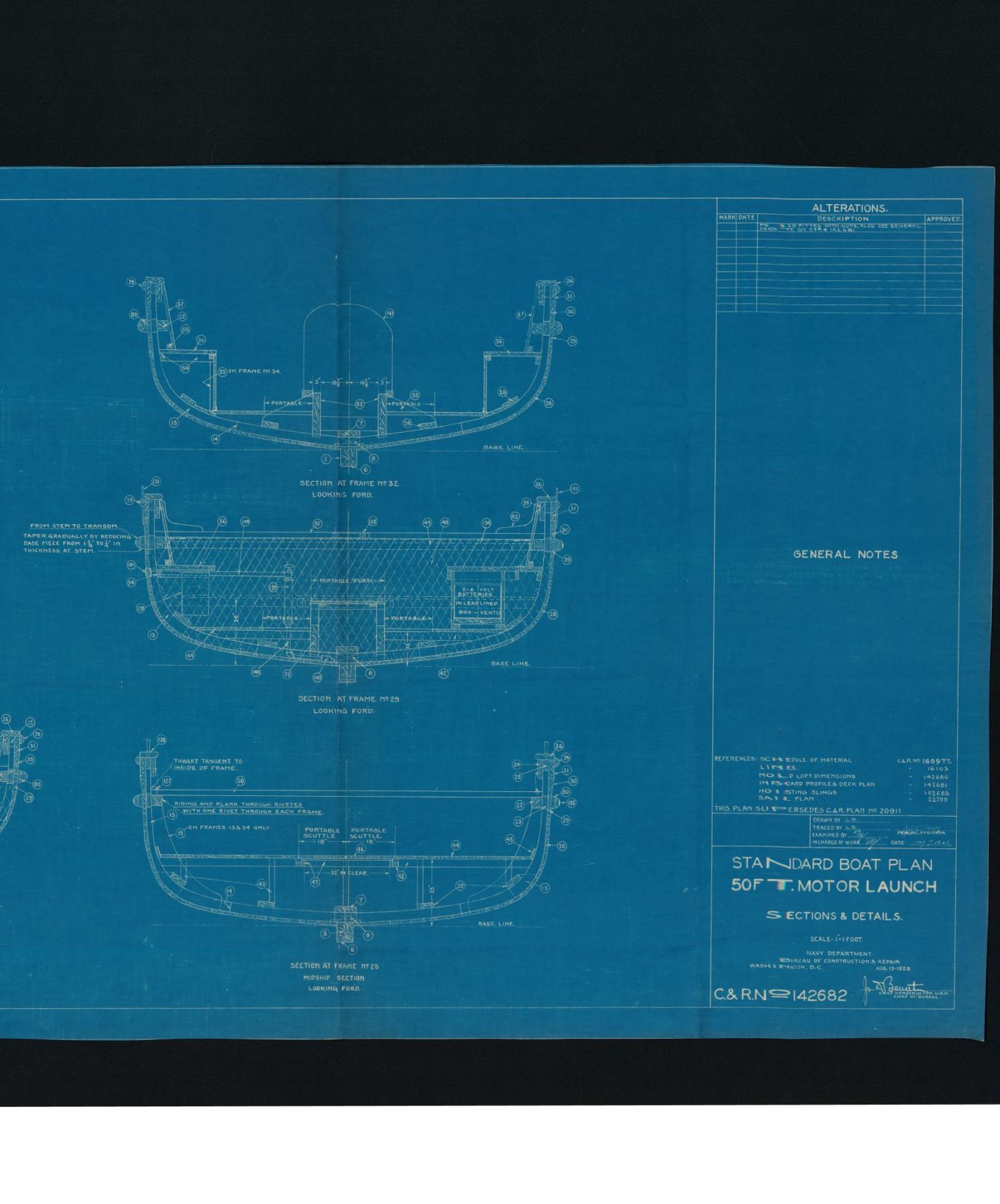

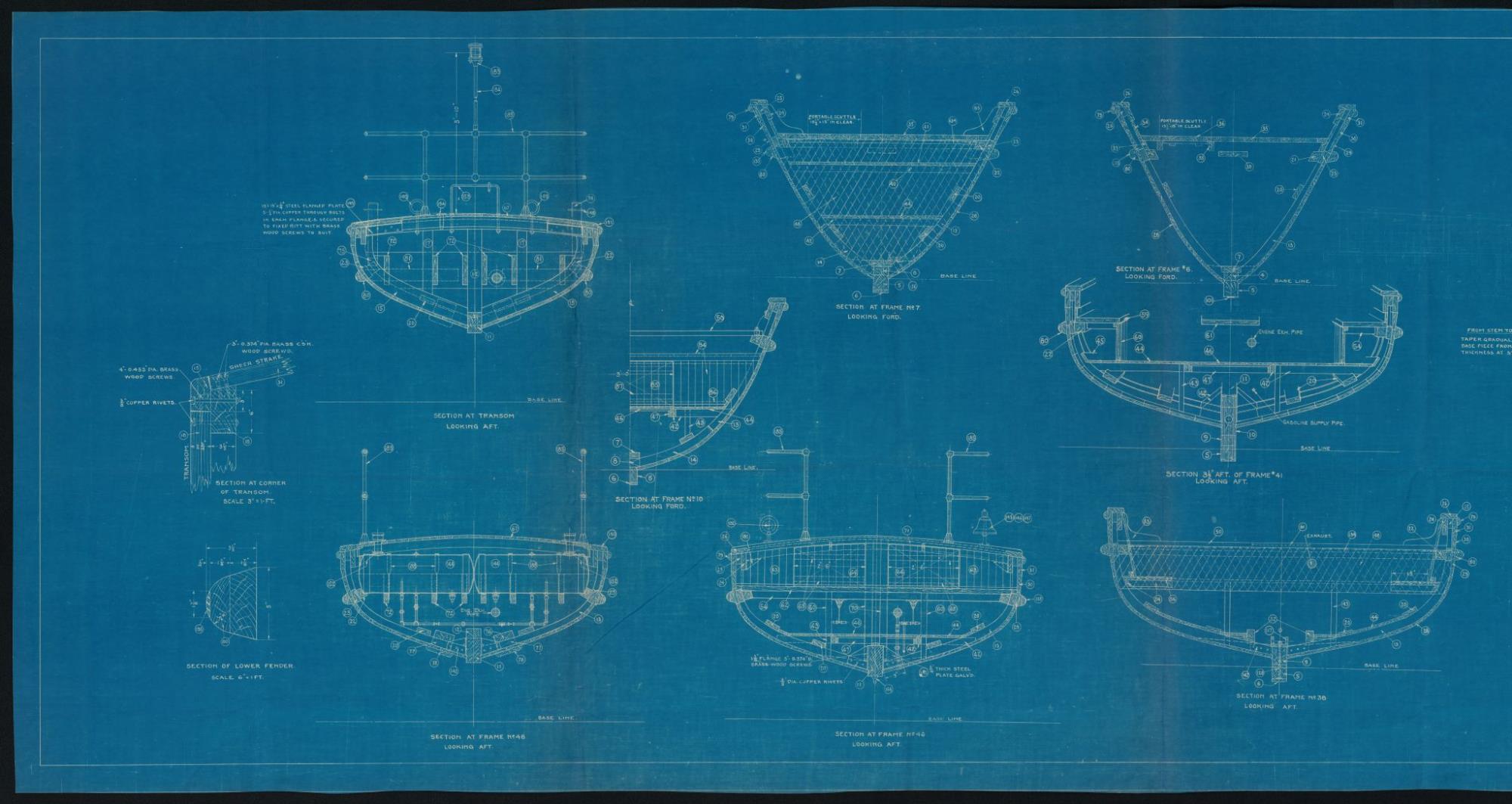

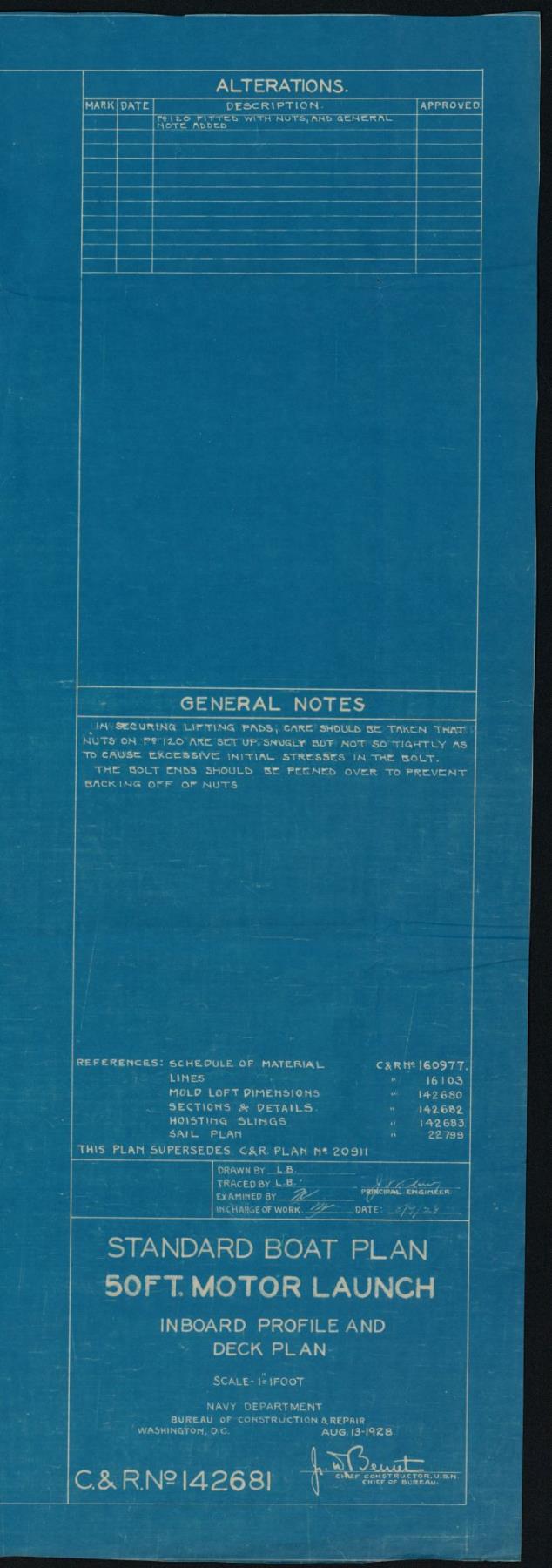

1993.0067.0210.0150' Motor LaunchLaunchDepartment of the Navy, - DesignerExact 08/13/1928 -Plans for a 50' Motor Launch designed by the Navy Dept. Bureau of Construction and Repair. One set of Plans A-B. Plan A is the nboard profile and deck plan, noted as C&R Drawing No. 142681. Plan B depicts various sections and details, noted as C&R Drawing No.142682. Scale for Plans A and B is 1" = 1'. Material for Plans A and B is blueprint.27.000in - 67.000inImage 1
